- Type:
-
Doppler Ultrasound Equipment
- Brand Name:
-
DAWEI
- Model Number:
-
DW-T6
- Place of Origin:
-
Jiangsu, China
- Instrument classification:
-
Class II
- Warranty:
-
2 years
- After-sale Service:
-
Online Technical Support
- Name:
-
3D/4D COLOR ULTRASOUND MACHINE
- system:
-
Windows System
- probe connectors:
-
3
- scanning mode:
-
convex/linear/micro-convex
- cine loop:
-
1024
- package size:
-
97*68*141cm
- G.W:
-
80kgs
- double screen:
-
19″ LCD, 10″ touch screen
- Certificate:
-
ISO13485,CE
- Display mode:
-
energy, speed, variance (support speed variance), frequency, gain
- Supply Ability:
- 200.0 Set/Sets per Month 3D/4D COLOR ULTRASOUND MACHINE
- Packaging Details
- wooden carton package
package size: 97*68*141cm
G.W.: 80kgs
3D/4D COLOR ULTRASOUND MACHINE
- Port
- Shanghai port
-
Lead Time
: -
Quantity(Sets) 1 – 10 >10 Est. Time(days) 3 To be negotiated
3D/4D COLOR ULTRASOUND MACHINE

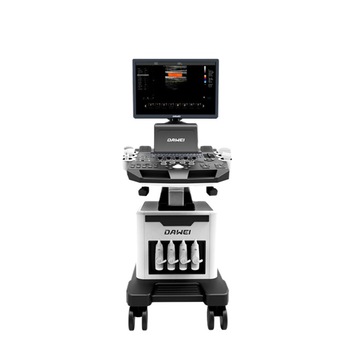

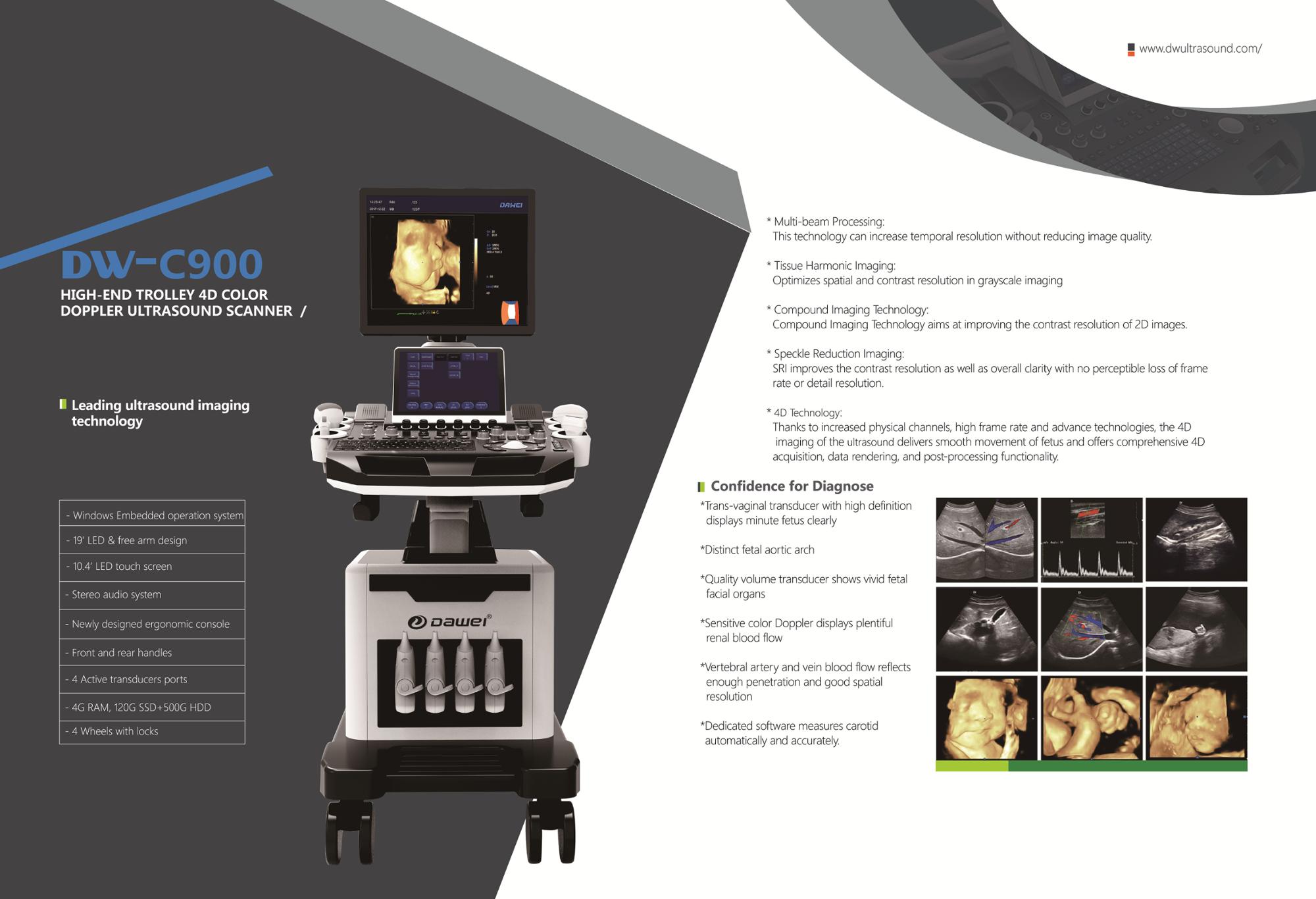

1.DW-T6 (DW-C900) real time 4D trolley color doppler
2.Stable performance
3.double screen, 19″ LCD, 10″ touch screen
4.Windows XP system
5.ISO13485,CE
6, high resolution image quality
Main features of 3D/4D COLOR ULTRASOUND MACHINE
Display mode:
For black and white images: B, 2 B, 4 B, B | | D M, B, left and right sides PW PW (D) (D), fluctuation, M,
B mode local amplification, linear array probe trapezoidal imaging, 3 D image reconstruction / 3 D real-time
color Doppler image: spectrum: B/BC, BC/B, B/D, B/C/D CFM: | B | | | D, B C C M, B | C double real-time,
PW (D) (D), CFM, CPA, the CW
Display mode: energy, speed, variance (support speed variance), frequency, gain
Display control: sampling frame size, location, linear probe emission Angle is adjustable
Detailed features of 3D/4D COLOR ULTRASOUND MACHINE
Digital Beam forming
continuous dynamic focusing
dynamic aperture
dynamic Bian track
received delay weighted sum
support half-step away from the scan linearity receiving support ± 10 ° angle
Multi-beam Parallel Processing Technology
The signal processing / Doppler sound
Dynamic Filtering
quadrature demodulation
total gain adjustment
Composite Gain Technology: 8-segment TGC and D-AGC
B, C-type, D-type, M mode separately adjustable total gain
low-pass filter
subsample
sound power regulator
Doppler tone adjustable stereo output
Image Processing
dynamic range conversion and logarithmic compression
temporal filtering
spatial filtering
frame averaging
Edge Enhancement
grayscale conversion
B | M type or M-type scanning speed
Line Density Control
scanning angle / width control
image optimization
image upside down
multi-angle image rotation
color bars grayscale inversion selection
tissue and blood flow image composite image processing
monochrome image resolution 1024 × 768 × 8bit (256 gray levels)
color image resolution 1024 × 768 8bit × 8bit × 8bit color coding
Standard configuration
main unit
3.5MHZ convex probe
4D volume probe
19″LCD display with 10″ touch screen
USB ports
DICOM 3.0
DVD-RW
Optional configuration
6.5MHz R10 trans vaginal probe,
7.5Mhz linear probe,
2.5MHz phased array probe,
CW function,
Elastohraphy,
Panoramic,
color video printer,
laser printer
3D/4D COLOR ULTRASOUND MACHINE

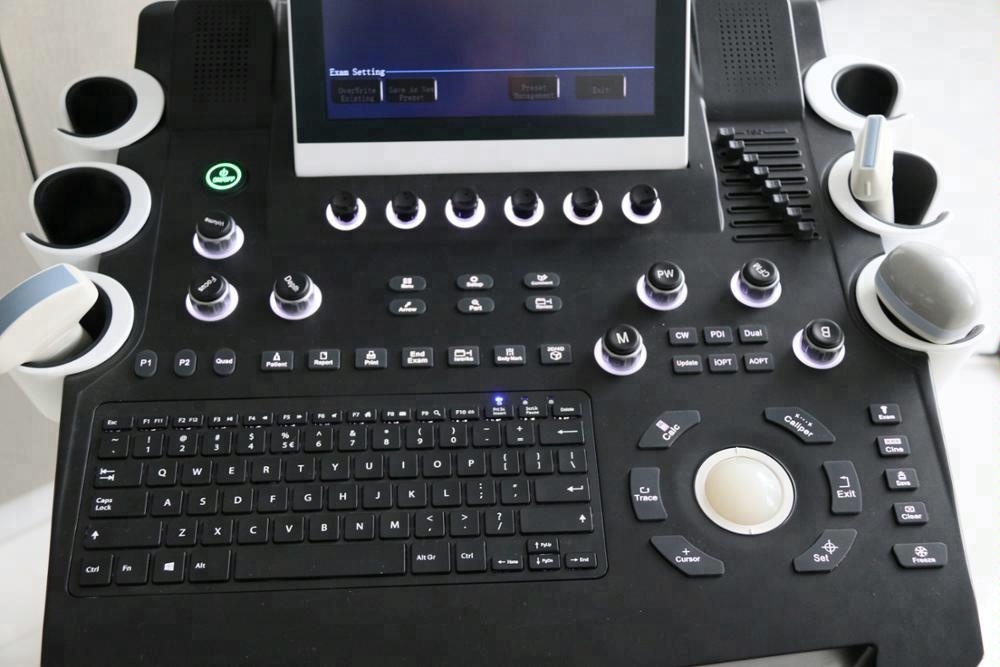

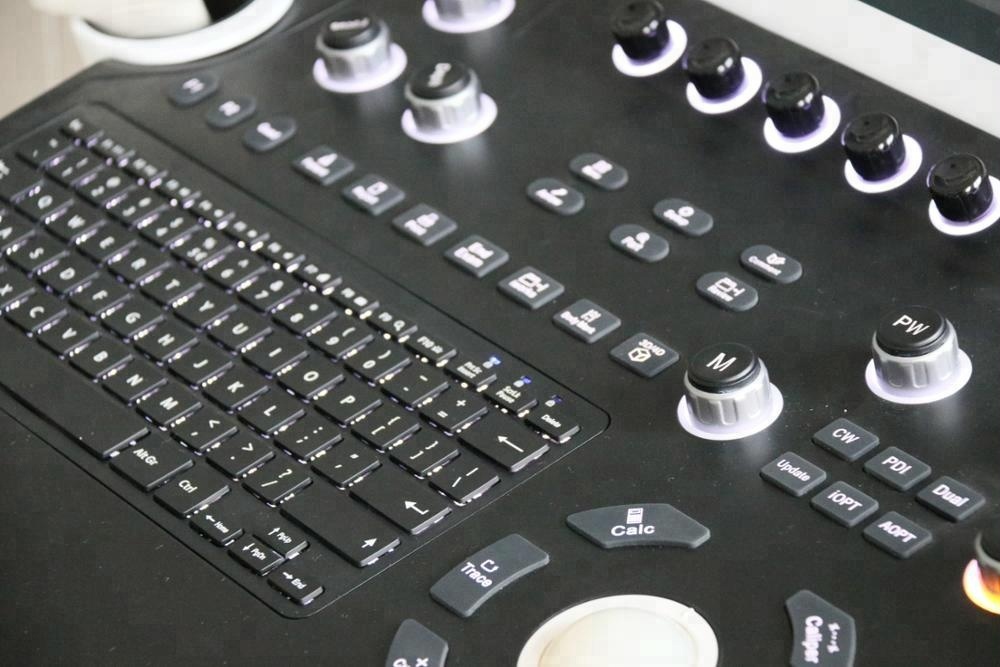

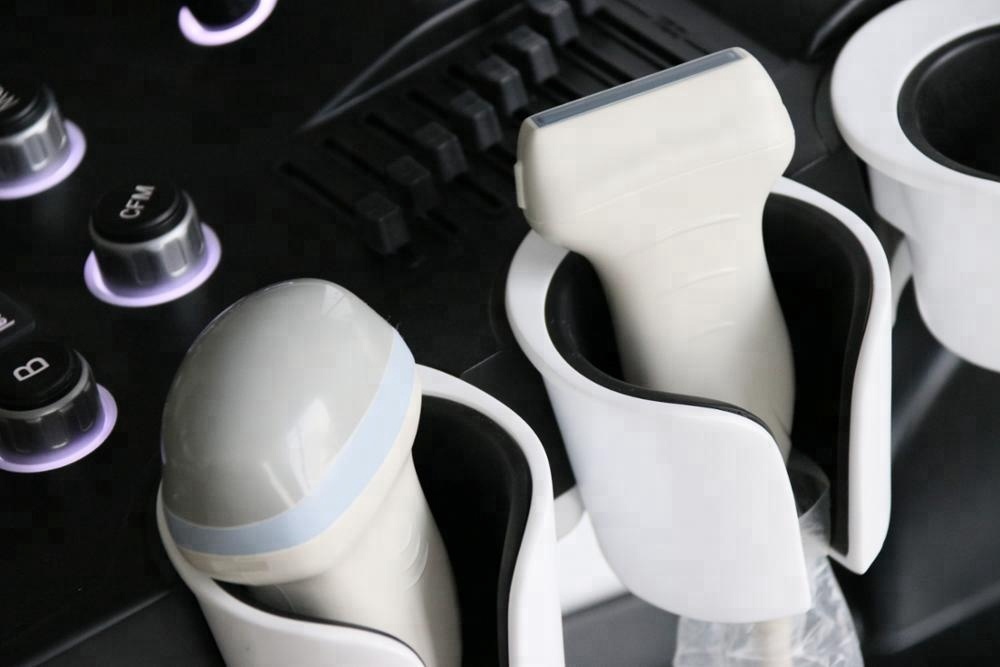

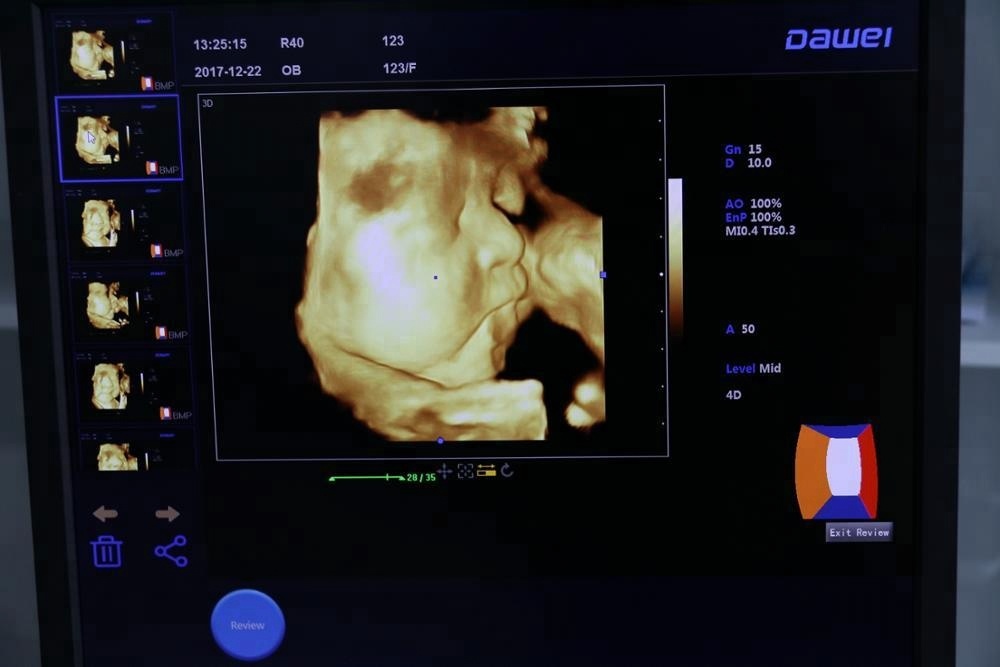

More detailed photoes
