- Type:
-
Portable Ultrasonic Diagnostic Devices
- Brand Name:
-
dawei
- Model Number:
-
DW-VET6
- Place of Origin:
-
Jiangsu, China
- Instrument classification:
-
Class II
- Warranty:
-
2 years, 2 Years
- After-sale Service:
-
Online Technical Support
- COLOR:
-
black&white
- Probe Connector:
-
1
- monitor:
-
5.6 inch LED
- Display mode:
-
B, B+B
- USB port:
-
1
- Application:
-
pigs, dogs, cats, sheep, swine
- MOQ:
-
1 set
- elements:
-
80
- Certificate:
-
CE ISO13485
- Supply Ability:
- 500.0 Unit/Units per Month
- Packaging Details
- handheld ultrasound scanner packed with 400*390*480mm
carton
- Port
- any port of China
-
Lead Time
: -
Quantity(Units) 1 – 10 >10 Est. Time(days) 5 To be negotiated

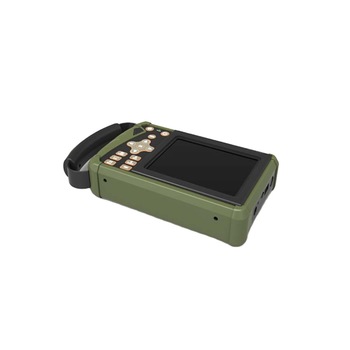

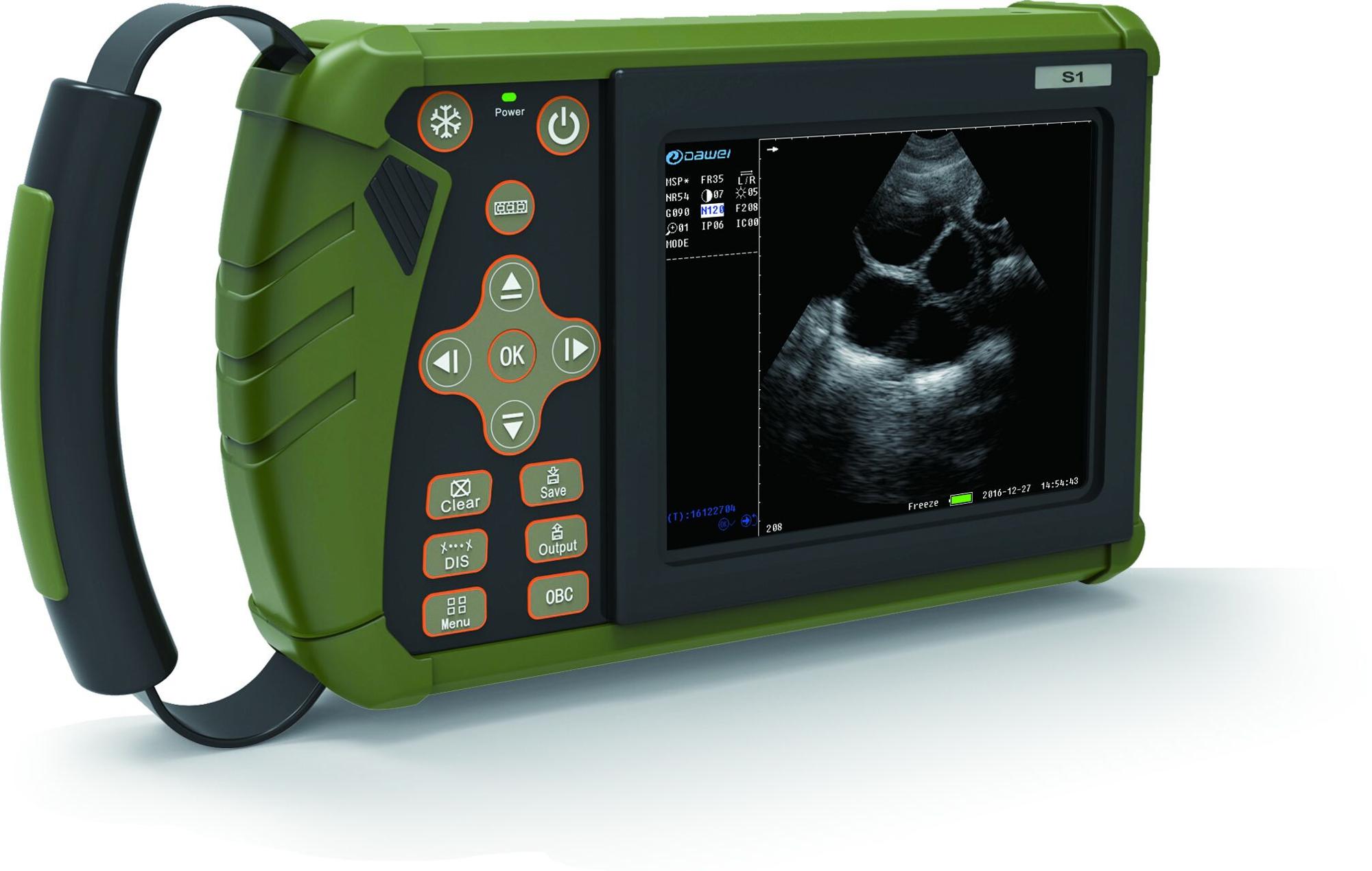

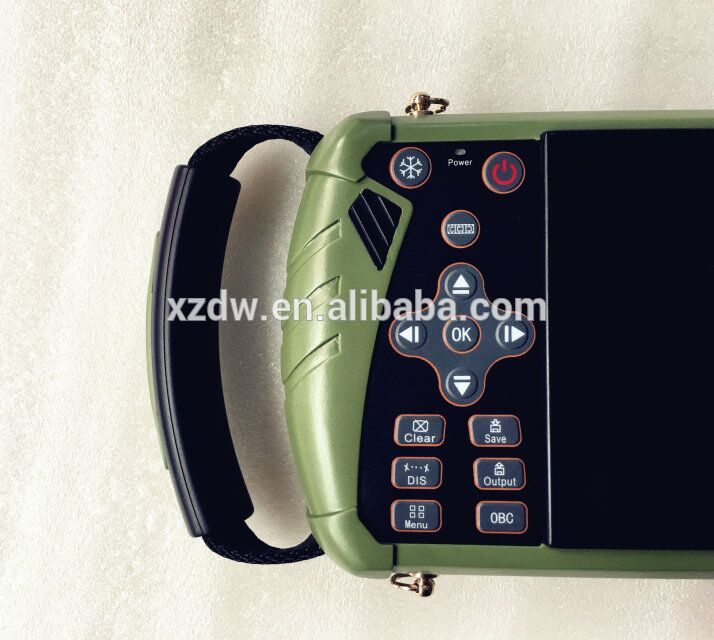

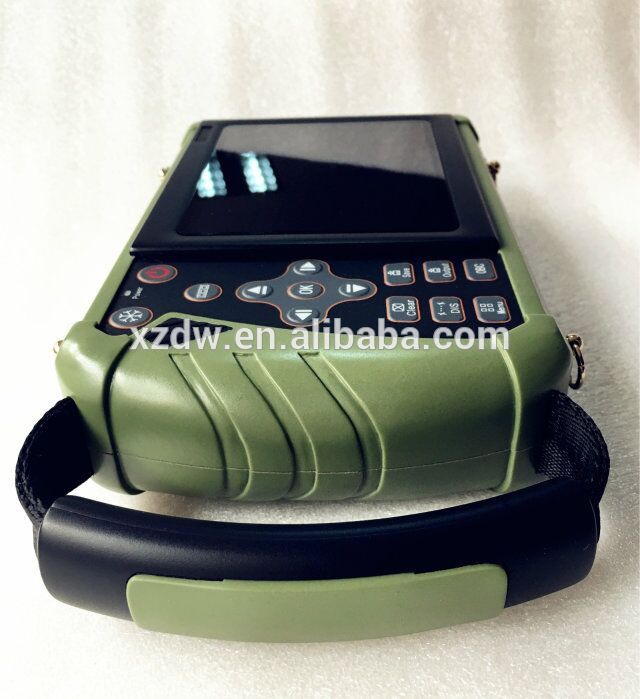

ultrasonido veterinario&handheld ultrasound scanner&palm ultrasound scanner DW-VET6
Specification:
|
Size |
30.5*15.3*5cm |
|
Weight |
0.95kg |
|
Display size |
6.5 inch LED display |
|
E-zoom |
magnify 2 times of real time image |
|
Dynamic range |
60~120dB adjustable |
|
Focus position |
dynamic electron focusing |
|
Gray scale |
256 level |
|
Image processing |
8γcorrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc |
|
Image multiplying factor |
3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes) ×0.8, ×1.0 (display penetration depth) |
|
Frequency conversion |
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe |
|
Measuring function |
Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc |
|
Capacity cine loop |
real time display 256 consecutive images which are memorized successively |
|
Annotation function |
hospital name, patient’s name, age and gender |
|
Puncture guide |
3.5MHz convex array probe can display puncture guide line in B mode |
|
Gain control |
8 segments TGC and overall gain can be adjusted respectively |
|
Image polarity |
left and right flip, up and down flip |
|
Image playback |
series playback or check one by one |
|
Permanent storage |
128 images |
|

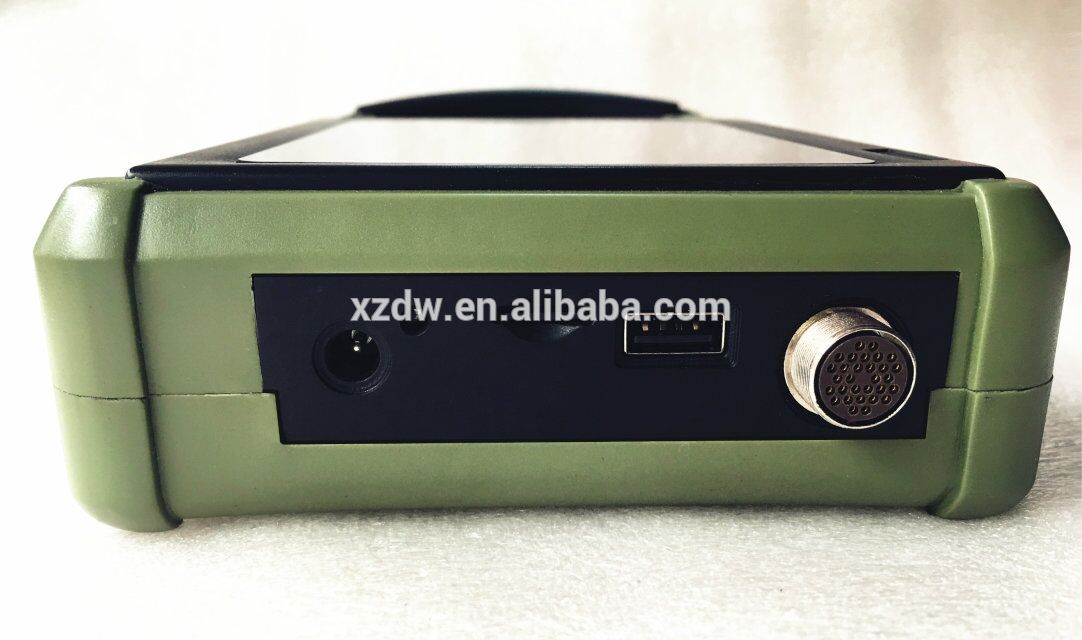

Output interface |
USB port |
|
Extended function |
6.5MHz/R13 Micro-convex array probe, 7.5MHz/L40 Linear probe |
Standard configuration:
3.5Mhz convex probe
battery
carry box
optional:
7.5Mhz linear probe
7.5Mhz rectal linear probe
micro convex probe

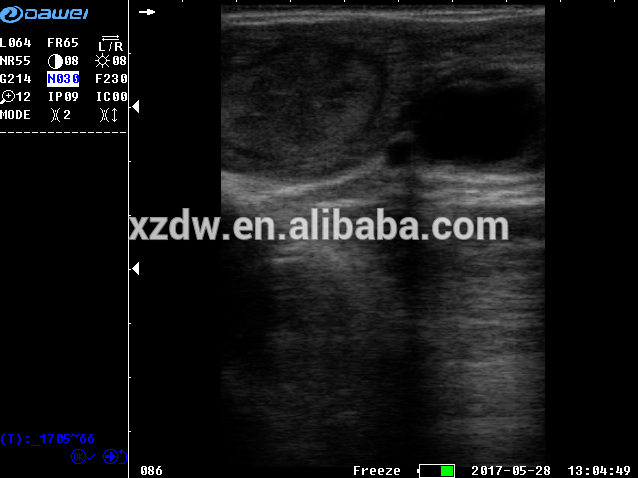

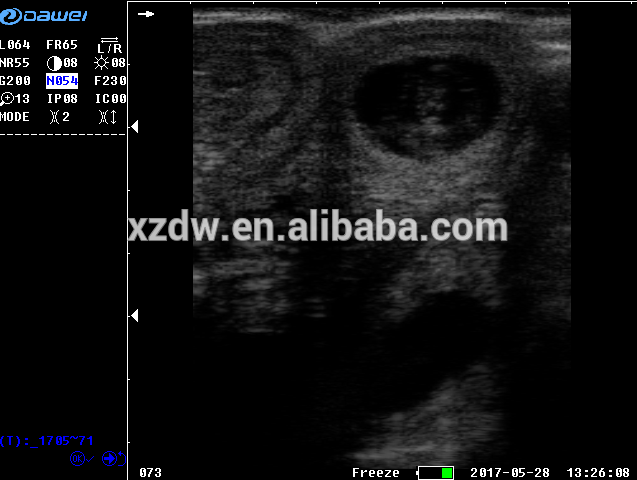

Real time images:
package for the handheld ultrasound scanner:
Delivery details
|
Brand |
DAWEI |
|
Origin |
China |
|
MOQ |
1 set |
|
Delivery |
3(THREE) working days after receiving the payment |
|
Payment |
TT,Western Union,Paypal,Escrow, L/C,Credit Sale |
|
Package |
Packed double cartons,bound with four plastic belts externally |
|
Warranty |
TWO years warranty . After TWO years the cost of providing paid services to maintenance |
|
Validity |
7 working days |
Standard Configuration:
12.1 inch LED
3.5MHz Multi-frequency convex probe
Options:
6.5MHz Multi-frequency Trans-vaginal probe
7.5MHz Multi-frequency high frequency linear probe
Trolley
Please contact us freely for more information of handheld ultrasound scanner!
